Frame: aluminium (AL6061-T6), triple butted aero tubing, dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, smooth welded
Fork: curved aluminium fork
Headset: Tange Seiki integrated
Gear Shift: Shimano Alfine 8-speed / 11-speed hub
Power: Gates Carbon Drive™ CenterTrack 115T,
Transmission: front 55 - rear 22 teeth / front 50 - rear 24 teeth
Crank Set: Shimano Alfine Hollowtech II
Bottom Bracket: BSA Shimano Alfine Hollowtech II
Pedals: Schindelhauer Urban Pedal, aluminium, CNC machined, silver high polished
Stem: Schindelhauer, silver high polished
Handlebar: Schindelhauer aluminium moon bar silver high polished

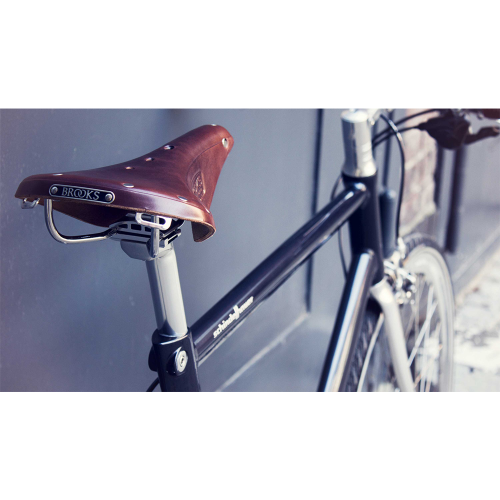

Saddle: Brooks B17 antique brown
Grips: Schindelhauer ergo leather, antique brown
Seatpost: Kalloy LCS, two bolt system for a precise adjustment

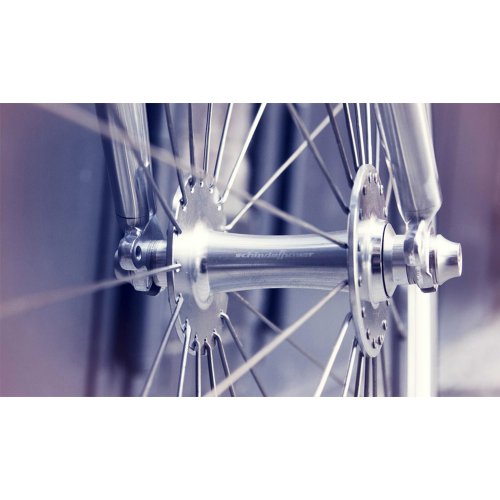

Wheels: Schindelhauer high flange FW hub, Shimano 8-speed / 11-Speed RW hub silver high polished, Alexrims CX30 rims silver polished, DB spokes, FW radial - RW 2-cross
Brakes: Tektro R539, Tektro FL750
Tires: Continental Contact II with reflective stripes
Weight: 11,1 kg / 11,0
Mudguards: mudguard mounting possible
Carrier: front- and rear pannier rack mounting possible
Being sporty doesn´t mean less comfort. We have successfully managed to combine both features- sportiveness and comfort- with the Ludwig geometry. To achieve this, we took the geometry of our tough singlespeed frame and carefully modified it by relocating the bottom brackets slightly lower and applying a slightly extended headtube and fork to compensate for the increased saddle height. Along with the extended headtube all Ludwig-series bikes provide a relaxed and suitable touring seating position.
