Frame: aluminium (AL6061-T6), triple butted aero tubing, dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, smooth welded, Pinion bracket, forged dropouts for a clean transition without an apparent weld seam Fork: curved aluminium fork for disc brake mount Headset: Tange Seiki integrated Gear Shift: Pinion 9- / 12- / 18 speed gear box Power: Gates Carbon Drive™ CenterTrack 115T, Transmission: front 46 - rear 30 teeth Crank Set: Pinion Pedals: Schindelhauer Urban Pedal, aluminium, CNC machined, silver high polished Stem: Schindelhauer, silver high polished Handlebar: Satori Noirette, aluminium, silver high polished Saddle: Brooks Swallow Classic / Brooks Slender Cambium Grips: Schindelhauer ergo leather / Brooks Cambium Seatpost: Kalloy LCS, two bolt system for a precise adjustment Wheels: Schindelhauer h igh flange FW hub disc - Pinion RW hub silver high polished, Ryde Dutch19 rims silver polished, DB spokes, FW - RW 3-cross Brakes: Trickstuff Cleg 4 disc brakes 160mm, Goodridge brake hoses Tires: Schwalbe Kojak 35-622 Weight: 12,2 kg / 12,3 kg / 12,7 kg Mudguards: mudguard mounting possible Carrier: front- and rear pannier rack mounting possible Lighting: on request

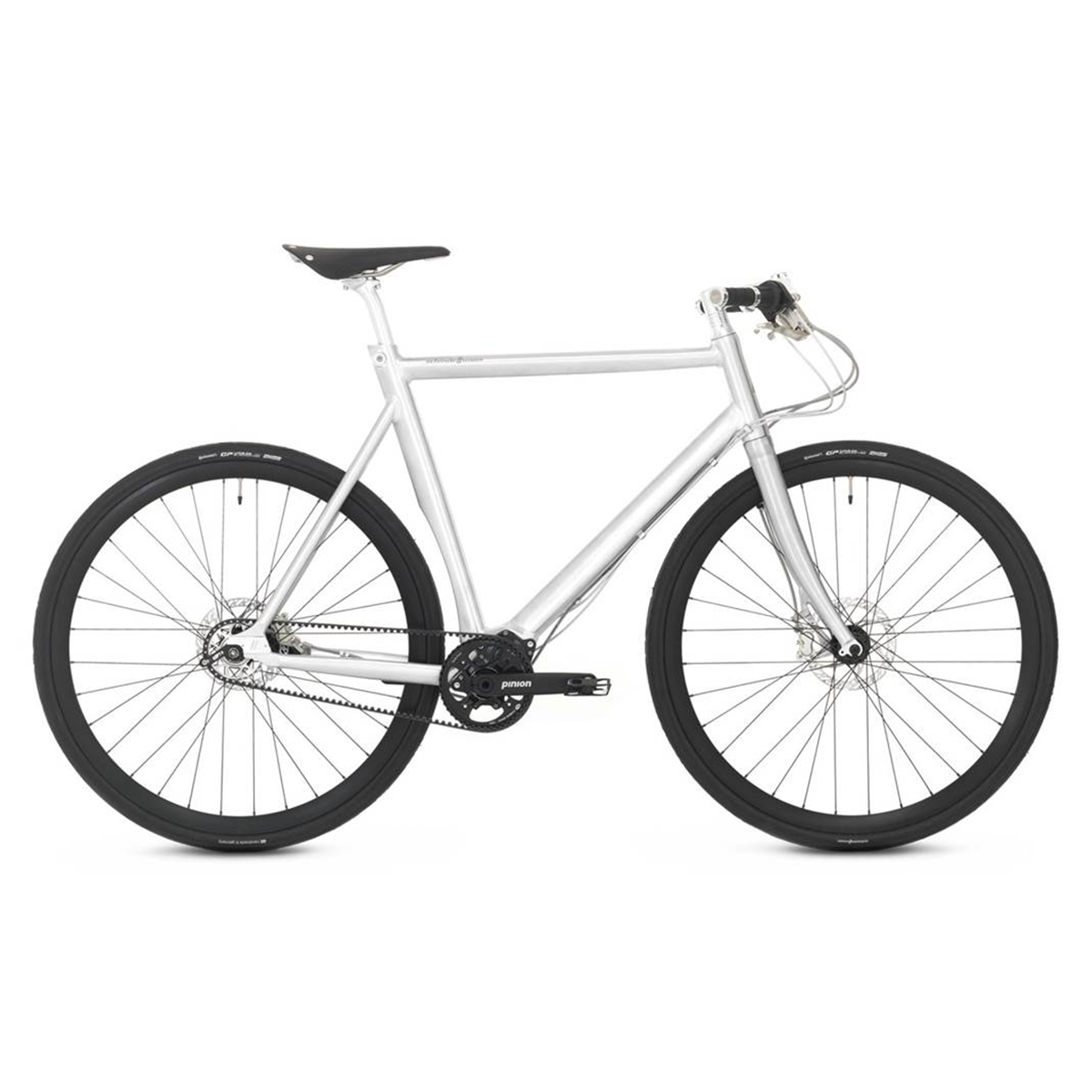

At the heart of Schindelhauer’s new vanguard bicycle - the Wilhelm - lies a Pinion gearbox. Nine, twelve or eighteen evenly spaced gear ratios, giving a gear range totalling 636%, the current pinnacle in shifting. Every gear conveys the immediacy of a single speed transmission, while the centrally-mounted gearbox creates a low centre of gravity and high stability. Equipped with exclusive CNC-machined disc brakes by Trickstuff, a Brooks saddle and a Gates’ CenterTrack System, the Wilhelm can be fully customised by customers.
